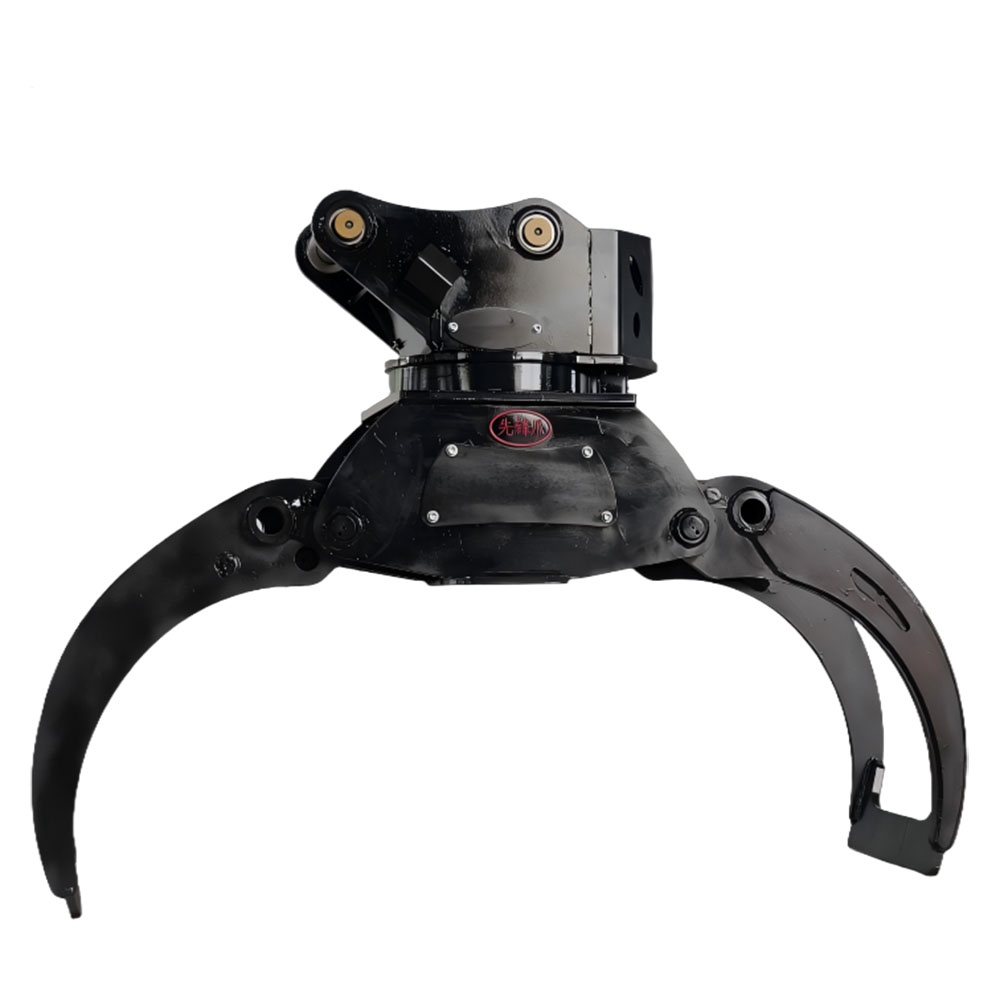

MEIXTO MX06 Hydraulic Rotating Log Grapple for Forestry Operations
Model: MX06 | A durable forestry attachment designed for efficient log handling, sorting and timber loading.
MEIXTO MX06 Hydraulic Rotating Log Grapple is designed for forestry applications requiring efficient timber handling. Its optimized structure provides reliable gripping performance for log loading, sorting and transportation operations.
CE-certified forestry excavator attachments compatible with CAT, Komatsu, Volvo and other major excavator brands for logging, tree removal, timber handling and land clearing.
MEIXTO MX06 Hydraulic Rotating Log Grapple for Forestry Applications
Efficient Solution for Timber Handling
The MEIXTO MX06 Hydraulic Rotating Log Grapple is a professional forestry attachment designed for handling logs and timber materials efficiently.
With a practical structure and reliable gripping capability, the MX06 helps operators complete timber loading, sorting and handling tasks with improved flexibility.
Designed for Forestry Material Handling
#
The MX06 is suitable for various forestry applications, including:
Log handling
Timber loading
Wood sorting
Forestry transportation preparation
Material stacking operations
Reliable Structure for Continuous Operation
The MX06 features a compact and durable design developed for demanding forestry environments.
The optimized grapple structure allows stable gripping of timber materials while maintaining operational flexibility.
Protected Hydraulic Hose Design
The hydraulic supply hoses are routed internally through the knuckle link and top section.
This design helps reduce external damage risks during operation and supports longer service life in challenging working environments.
Main Features
Efficient Log Handling
Designed for collecting, moving and sorting timber efficiently.
Internal Hose Routing
Helps protect hydraulic lines and reduce maintenance issues.
Flexible Rotation
Provides convenient positioning during forestry operations.
Compact Forestry Design
Suitable for professional timber handling applications.

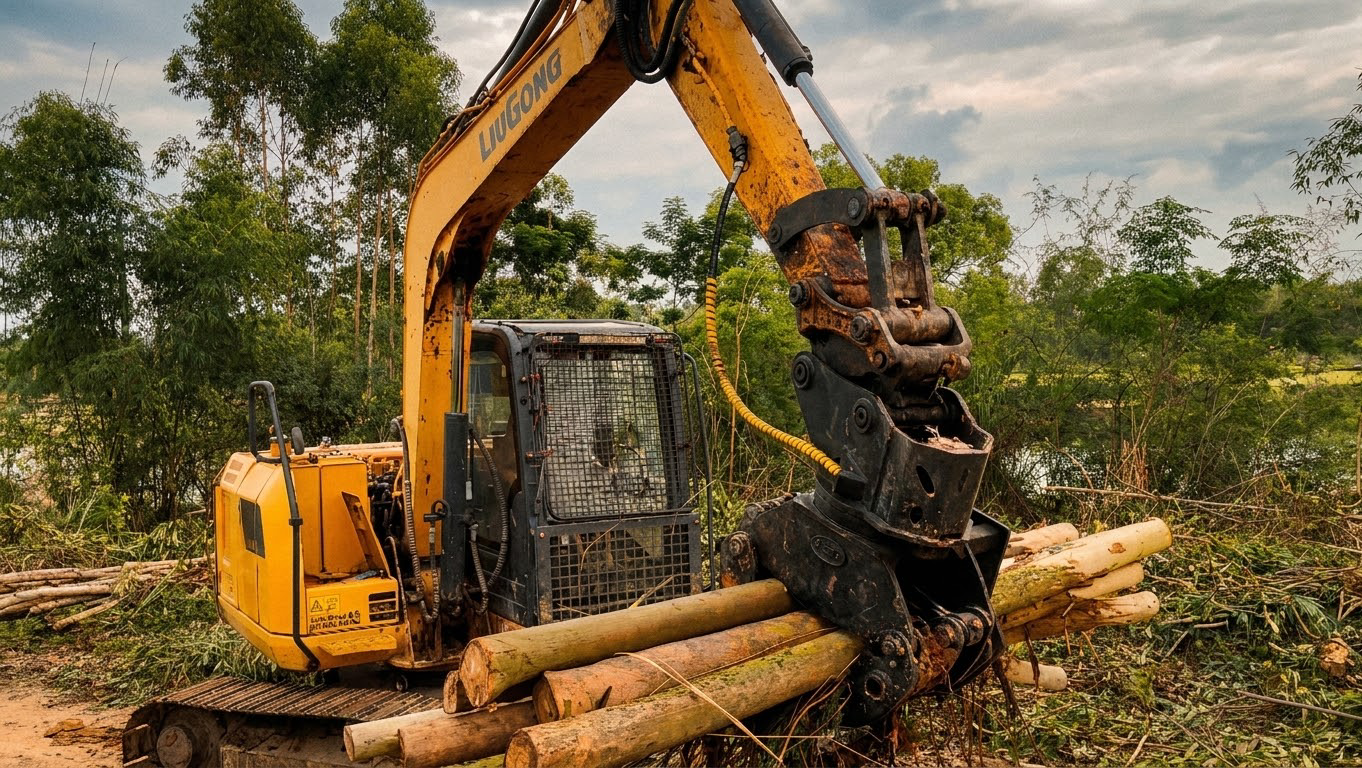

Applications
MEIXTO MX06 can be used for:
Forestry harvesting
Timber yards
Log loading
Wood handling
Land clearing projects
| Suitable Excavator | 12-15 T |
|---|---|
| Steel material | Q355B |
| Optional electric control | v |
| Clamping Height | 1000 mm |
| Open Height | 1500 mm |
| Inner/Outer Clamp Width | 425/475 mm |
| Maximum Opening | 1800 mm |
| Minimum Embrace Circle | ≤70 mm |
| Maximum Holding Circle | 660 mm |
| Net Weight | 650 kg |
| Rotation Type | External Gear Vertical Rotary |
| Module/Raceway Diameter | M5/315 |
| Motor Type | Cycloid Motor/Orbital Motor(Optional) |
| Operation Pressure | 21 Mpa |
| Diameter/Cylinder Diameter | 55/90 |
